Dettagli:

Luogo di origine: Guangdong, Cina
Marca: JINTONG
Numero di modello: JTT-1200R

Termini di pagamento e spedizione:

Quantità di ordine minimo: 1 pezzo
Prezzo: $32,000-40,000 / piece
Miglior prezzo Contatto

Informazioni dettagliate
Plastica elaborata: PP, ABS Capacità di plastificazione: 250 g/s
Altezza della muffa: 150 - 520 mm Numero dell'espulsore: 2
Ictus di espulsione: 75 mm Forza di eiettore: 27 kN
Volume di tiro: 410 cm3 Tasso di iniezione: 202 g/s
Peso di iniezione: 369 g Velocità a vite: 1 - 220 giri al minuto
Diametro a vite: 50 mm Vattone L/D: 25
Distanza della barra di legame: 620 MILLIMETRI Peso della macchina: 5500 kg
Energia: 24,5 chilowatt
Evidenziare:

2 Stations Vertical Injection Molding Machine

,

3 Stations Rotary Table Injection Molding Machine

,

250g/s Plasticizing Capacity Injection Molding Machine

Descrizione di prodotto

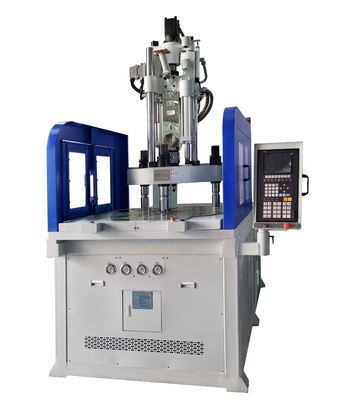

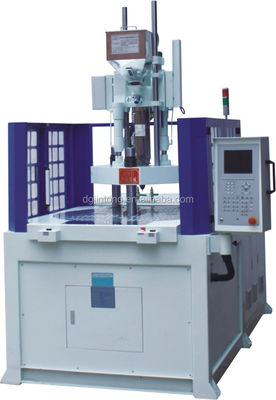

Rotary Table Vertical Plastic Injection Molding Machine 120T
Rotary table vertical injection molding machine JTT-1200R
Clamping Force 120T
Injection Weight 237-369g

Vertical clamping, vertical injection. Easy to set torque, speed, deceleration distance and stand number segmentation. Computer program control for rotary table direction including forward-rotating, reverse-rotating, and forward/reverse alternative rotating. Optional energy-saving motor available.

Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 0
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 1
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 2
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 3
Main Features
  • Vertical clamping and vertical injection design
  • Adjustable clamping force, injection weight and shot speed to meet production requirements
  • Available in 2-station, 3-station or multi-station configurations (one up die, two or four down die)
  • Optimized for operating insert parts and improving productivity
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 4
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 5
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 6
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 7
Product Advantages
  • Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
  • High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
  • Low heating: Reduces cooling water quantity by at least 55% compared to similar models
  • Low noise: Optimized motor operation with imported bearing and oil pump reduces working noise by 15-20db
  • Precision: Fully closed-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage

With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.

Packing & Delivery
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 8
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 9
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 10
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 11
