Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty
Dettagli:
| Luogo di origine: | Cina |
| Marca: | JINTONG |
| Certificazione: | ISO9001 CE |
| Numero di modello: | JTT-2000R |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pezzo |
|---|---|
| Prezzo: | $62,000-66,000 / piece |
|
Informazioni dettagliate |
|||
| Forza di serraggio: | 200t | Peso di iniezione: | 456-662G |
|---|---|---|---|
| Ictus di espulsione: | 75 mm | Forza di eiettore: | 48 kN |
| Volume di tiro: | 678 cm3 | Tasso di iniezione: | 212 g/s |
| Diametro a vite: | 60 mm | Distanza della barra di legame: | 760mm |
| Peso della macchina: | 12000 kg | Colpo aperto: | 600 mm |
| Energia: | 44.3 kW | Colpo della vite: | 260 mm |
| Forza di apertura: | 22.4t | Diametro della tavola rotante: | 1500 mm |
| Dimensioni della macchina: | 3.0*2.2*3.6m | ||
| Evidenziare: | 200T Clamping Force Vertical Injection Moulding Machine,High Productivity Rotary Table Injection Moulding Machine,1 Year Warranty Vertical Plastic Injection Moulding Machine |
||
Descrizione di prodotto

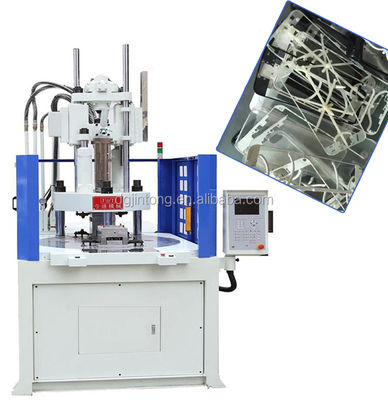

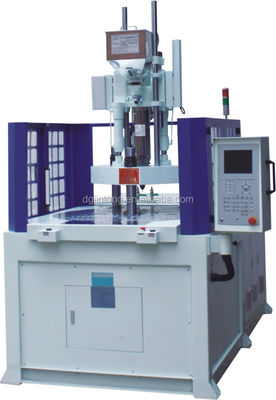

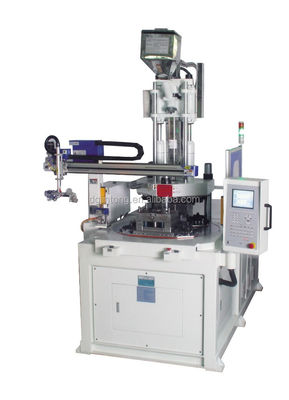

Rotary Table Vertical Plastic Injection Moulding Machine 200T (Model JTT-2000R)
Key Specifications
| Clamping Force | 200T |
|---|---|
| Injection Weight | 456-662g |
Product Description
Vertical clamping and injection system with rotary table functionality for efficient plastic molding operations.
Main Features
- Vertical clamping and injection system
- Adjustable clamping force, injection weight and shot speed
- Multiple station configurations (2, 3 or multi-station)
- Computer-controlled rotary table with forward, reverse, and alternating rotation
- Optional energy-saving motor available
- Easy torque, speed, and deceleration distance adjustment
Product Advantages
Energy Efficiency
Saves 30% energy compared to similar products using SIFU pump system
High Productivity
SIFU motor with max speed 2200/min increases oil pump output, improving productivity by over 15%
Thermal Management
Reduces cooling water requirement by 55% compared to similar machines
Quiet Operation
Optimized motor with imported bearing and oil pump reduces noise by 15-20db
Precision Molding
Closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed systematic and standardized service processes including a 24-hour response mechanism to promptly resolve customer issues.
